€ 204.99

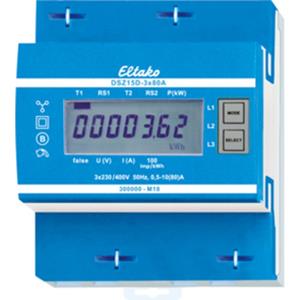

EAN: 4010312501870 - manufacturer-number: DSZ15DZ-3x80AMID - Two-way three-phase meter MID calibrated DSZ15DZ-3x80A MID meter type electronic, rated current (In) 10A, maximum current (Imax) 80A, rated voltage (Un) NL 230 ... 230V, rated voltage (Un) LL 400 ... 400V, frequency 50 .. 50Hz, accuracy class B, Polart four-wire, direct measurement version, active power energy type, suitable for purchase, tariff version two-tariff, external tariff control, calibrated, approval Measuring Instruments Directive, pulse output optical, pulse type S0, pulse rate 1000 ... 1000Imp/kWh (kvarh), Display type digital, mounting type REG, width in division units 4, width 70mm, depth 58mm, height 82mm, interface design other, number of digits 7, protection class (IP) IP20, two-way three-phase meter. Maximum current 3x80A, standby loss only 0.5 watts per path. Modular device for mounting on mounting rail DIN-EN 60715 TH35. 4 division units = 70mm wide, 58mm deep. Accuracy class B (1%). With S0 interface. The direct-measuring three-phase meter measures the active energy based on the currents flowing between the inputs and outputs. The internal consumption of only a maximum of 0.5 watts of active power per path is not measured and not displayed. The active energy is added depending on the sign. Positive power in the meter means energy consumption, negative power means energy delivery. The energy measurement is netted. If the energy purchase (P positive) is greater than the energy delivery (P negative), the counter reading T arrow right is increased. If the energy supply is greater than the energy consumption, the counter reading T arrow on the left is increased. Energy consumption is shown with a right arrow and energy delivery is shown with a left arrow above the active bar in the display. 1, 2 or 3 external conductors with currents up to 80A can be connected. The starting current is 4OmA. The N connection must be present. Energy consumption and energy delivery are stored non-volatilely and are immediately displayed again after a power failure. The 7-segment LC display can be read twice within two weeks even without a power supply. The power consumption is shown in the display with a bar that flashes 100 times per kWh. To the right of the display are the MODE and SELECT buttons, which are used to scroll through the menu according to the operating instructions. First, the backlight turns on. The total active energy per purchase and delivery, the active energy of the resettable storage purchases and delivery as well as the instantaneous values of power, voltage and current per phase conductor can then be displayed. Error message: If there is no external conductor, the corresponding external conductor is shown on the display. - DSZ15DZ-3x80A MID
