€ 109.99

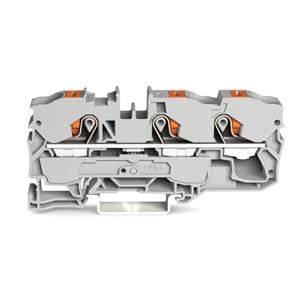

EAN: 4055143736114 - manufacturer-number: 2210-1301 - Feed-through terminal block 10mm 57A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 2,5 ... 10mm², Connectable conductor cross section solid-core 2,5 ... 16mm², Connectable conductor cross section multi-wired 0,5 ... 10mm², Rated current In 57A, Rated voltage 800V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 10mm, Height at lowest possible mounting height 36,9mm, Length 89mm, Closing plate required, Colour Grey - 2210-1301
