€ 3465.00

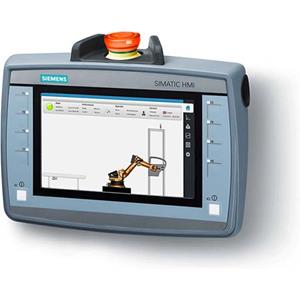

EAN: 4047623404729 - manufacturer-number: 6AV2125-2GB23-0AX0 - Mobile panel 7 Zoll Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of HW-interfaces industrial Ethernet 1, Number of interfaces PROFINET 1, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces USB 1, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces other 0, Supporting protocol for TCP/IP, Supporting protocol for MODBUS, Supporting protocol for PROFINET IO, Supporting protocol for EtherNet/IP, Supporting protocol for PROFIsafe, Type of display TFT, With colour display, Number of colours of the display 16777216, Screen diagonal 7inch, Number of pixels, horizontal 800, Number of pixels, vertical 480, Usable project memory/user memory 12288kByte, Number of function buttons, programmable 8, Number of buttons with LED 8, Number of system buttons 0, With enabling button/emergency-stop switch, With touch screen, With message indication, With message system (incl. buffer and confirmation), Process value representation (output) possible, Process default value (input) possible, With recipes, Number of password levels 50, With printer output, Number of online languages 32, Degree of protection (IP) IP65, Operation temperature 0 ... 45°C, Suitable for emergency stop, Max. height of fall (in accordance with IEC 60068-2-32) 1,2m, Suitable for safety functions, Width 248,4mm, Height 194,9mm, Weight 1,4kg - 6AV2125-2GB23-0AX0
